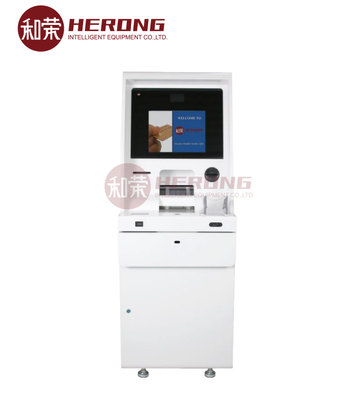

Name: CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution
Brand: Herong Intelligent Equipment Co., Limited
SKU: CDM-T68L
Price: 6,500.00 USD
Availability: InStock

Aceptable para OEM/ODM, fabricante de quioscos.

Spanish

Inicio

Productos

Sobre nosotros

Visita a la fábrica

Control de Calidad

Contacto

Inicio Productos Máquina del depósito en efectivo

CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution

Datos del producto:

Lugar de origen:	Cantón, China
Nombre de la marca:	HE
Certificación:	CE/CCC/FCC/ROHS/ISO9001
Número de modelo:	CDM-T68L

Pago y Envío Términos:

Cantidad de orden mínima:	1 pieza
Precio:	Negociable
Detalles de empaquetado:	Con embalaje estándar o de acuerdo con la solicitud del cliente
Tiempo de entrega:	15-20 días
Condiciones de pago:	LC, D/P, T/T, Unión Occidental
Capacidad de la fuente:	1000 piezas por mes

Contacto

Todos los productos

Quiosco de la máquina expendedora (133)

Quiosco del servicio del uno mismo (67)

cajero automático de la atmósfera (170)

Máquina del depósito en efectivo (68)

Quiosco de la posición del servicio del uno mismo (23)

quiosco del pago del uno mismo (29)

Quiosco que ordena del uno mismo (52)

Máquina del quiosco del boleto (22)

Quiosco del intercambio de moneda (10)

Quiosco del gobierno (17)

Máquina video de la caja (15)

Quiosco de Bitcoin (9)

Recambios del cajero automático (195)

Piezas del quiosco (17)

Módulo de la máquina bancaria (123)

Descripción detallada del producto

Seguro:	UL 291 / CEN 1	Vida del producto:	10 años
MTBF:	≥4500 horas	MTTR:	≤ 30 minutos
casete:	4 casetes de reciclaje, 1 casete de rechazo/retracción	Temperatura de trabajo:	-35°C~ +75°C (-31°F~ +167°F)

CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution

Advantages:

Reliability

Product Life: 10 years (in a standard environment with normal maintenance and repair)

MTBF: ≥4500 Hours, Cash Deposit: Average Number of Deposits Without Failure (MCBF) ≥5000 times

MTTR: ≤30 Minutes

Banknotes Return & OCR

Banknotes return function, which can support deposited banknotes enter into the temporary storage unit, then enter into the cassette afer customer's confirmation.

Support banknotes serial number tracking.

Sorting & Counterfeiting

Banknotes sorting and counterfeiting function.

Two-port sorting function, which can be used as a two-port sorting machine.

Specifications:

Dimensions	Width	730mm
	Height	1840mm
	Thickness	1185mm
	Net Weight	480kg
	Backing plate and carton packaging weight	490kg
	Backing plate and wood packaging weight	500kg

Summary:

Software		Compliant with CEN/XFS standard, support different protocols like: NDC, DDC, ISO8583, etc.
Security	Safe	UL 291/CEN 1
	Lock	Key Lock, Mechanical Combination Lock, Digital Lock
	Camera	Binocular Camera (opt.), Facial Camera, Cash Slot Camera
	Sensor	Body Sensor, Door Sensor, Infrared Sensor (opt.),Smoke Sensor (opt.), Light Sensor (opt.)
	Others	Explosion-proof Glass, PIN Pad Shield, DVR (opt.),Privacy Mirror
Controlling Unit	OS	Microsoft Windows 10 / Windows 11
	CPU	Support Intel Core i5/i7
	RAM	Support 8/16/32 GB Memory
	HDD	Support Max.1 TB Hard Disk
	Communication	RJ45, WIFI, X.25, etc.
	Power	AC 220V~240V,50~60 Hz,Surge protection,UPS(opt)
Cash Deposit Unit	Cassette	4 Recycling Cassettes, 1 Reject/Retract Cassette
	Capacity	4 recycling cassettes support to extend to Max. 8 recyclable sub units, the recycling cassette supports Max. 3400 banknotes, the reject unit and the retract unit support Max. 3400 banknotes. Up to 300 banknotes per transaction, 13 banknotes / second
	OCR	Support Banknote Serial Number Recognition Mixed deposit functon of multi-denomination banknotes Large-amount deposit function with uninterrupted banknote deposit
Customer Interface	Display	15” TFT Color LCD Touch Screen, Privacy Filter (opt.), Sunlight Readable
	EPP	PCI compliant, 4x4 metal EPP, 2x4 function keys, dust/water/vandal resistant, support customizable layout and braille key
	Card Reader	EMV Motorized Card Reader, DIP Card Reader(opt.), Contactless Card Reader (opt.) Card Security: Card Retract (opt.), Card return on power failure (opt.), and Anti-skimming
	Receipt Printer	Graphic Thermal Receipt Printer,E-journal
	Light	Device Guidance Light, Status Indicator Light, LED Electronic Screen Light (opt.), Logo Light (opt.)
	Others	Bar Code Reader (opt.), Fingerprint Reader (opt.), Speaker, Audio Jack
Environment	Work Environment	Temperature:-10℃~+65℃(+14℉~+149℉)(Indoor),-35℃~+75℃,(-31℉~+167℉)(Outdoor with heater) Humidity: 20%~85%(No condensation)
Environment	Storage Environment	Temperature: -20℃~+85℃(-4℉~+185℉) Humidity: 5%~90%(No condensation)
Additional Module		SIU Control Board, Fan, Heater (opt.)

CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution 0

CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution 1

CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution 2

Company Introduction:

CDM-T68L Bulk Deposit Machine High Quality Financial Self-Service Terminal Bank Cash Deposit Solution 3

Herong Intelligent Equipment Co., Ltd. is a professional manufacturer integrating R&D, production, assembly, sales and service. Herong was established in 2016 and is located in Dongguan City, Guangdong Province, China.

We are proficient in various types of plastic molds and CNC hardware processing. We also specialize in vending machines, ATM/VTM machines, self-service kiosks, all other functional kiosks and their parts. Our factory has advanced mold and injection molding equipment, and has set up its own CNC machining center, which can perfectly undertake ATM accessories, auto accessories, household appliances, daily necessities, electronic products, medical equipment and other projects. We have professional equipment such as CNC punching machine, bending machine, laser cutting machine, spraying line, dust free workshop and all other related equipment. We can provide ODM/OEM service for customers. All the products we offer are certified by ISO9001, SGS, RoHs, CE, FCC, etc. For logistics, we can choose DHL, UPS, FedEx, sea or air, etc., it is up to our customers.

By continuously improving product quality and providing excellent service, we have maintained a good cooperative relationship with customers in more than 130 countries around the world.

Shipment:

RFQ:

Q:what’s the condition of your product?
A:Generally we can provide 4 conditions:new original,new generic,original used and original ref.
Q:Is your products have a warranty?
A:Yes.Every product has a warranty,normally it is 3 months.
Q:Do you have your own factory?
A: Of course yes.We have our own factory,we can build the molds and produce parts by ourselves.
Q:What’s the lead time of your product?
A:Normally it is 3-7 days after payment.The lead time is related to the quantity you ordered.
