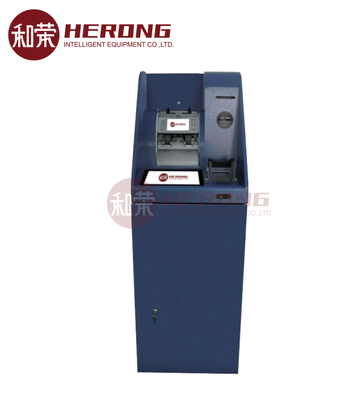

CDM-D06L High Capacity High Speed Cash Deposit Machine Banking Self-Service Terminal
Advantages:
Reliability
D06L provides users with maximum online uptime, minimal maintenance requirements, and the lowest repair costs.
Security
D06L provides superior security for users. lt features a UL/CEN-compliant safe, along with a facial recog-nition camera.
Flexibility
D06L features a modular design. lt supports a variety of optional modules, allowing users to customize accord-ing to their individual needs.
User-friendly
D06L features a highly humanized design, including chamfered corners, arear status indicator light and so on. And it supports the majority of SWITCH's online transactions.
Specifications:
| Dimensions |
Width |
500mm |
| Height |
1577.5mm |
| Thickness |
818mm |
| Net Weight |
230kg |
| Backing plate and carton packaging weight |
260kg |
| Backing plate and wood packaging weight |
275kg |
Summary:
| Software |
|
Compliant with CEN/XFS standard, support different protocols like: NDC, DDC, ISO8583, etc. |
| Security |
Safe |
UL 291/CEN 1 |
| Lock |
Key Lock, Mechanical Combination Lock, Digital Lock |
| Camera |
Binocular Camera (opt.), Facial Camera |
| Sensor |
Body Sensor, Door Sensor, Infrared Sensor (opt.),Smoke Sensor (opt.), Light Sensor (opt.) |
| Others |
Explosion-proof Glass, DVR (opt.) |
| Controlling Unit |
OS |
Microsoft Windows 10 / Windows 11 |
| CPU |
Support Intel Core i5/i7 |
| RAM |
Support 8/16/32 GB Memory |
| HDD |
Max.1 TB Hard Disk |
| Communication |
RJ45, WIFI |
| Power |
AC 220V~240V,50~60 Hz,Surge protection,UPS(opt) |
|
Cash Deposit Unit
|
Cash Bag |
1 Unit |
| Capacity |
Capacity ≥15,000 banknotes, up to 200 banknotes per transaction, Speed ≥ 700PPM, Support continuous deposit |
| OCR |
Support Banknote Serial Number Recognition |
| Customer Interface |
Display |
12.1” TFT Color LCD Touch Screen, Privacy Filter(opt.), Sunlight Readable |
|
Light
|
Device Guidance Light, Status Indicator Light
|
| Cash Deposit Module |
The module features a friction-type horizontal banknote deposit system that supports various banknote types. It utilizes advanced identification technologies, including ultraviolet imaging, white light imaging, infrared imaging, and multi-spectral imaging. The system analyzes ultraviolet and infrared optical properties, as well as fluorescent characteristics. Additionally, it employs security line magnetic feature analysis and thickness measurement techniques, along with magnetic imaging and variegated ink detection methods |
| Receipt Printer |
Graphic Thermal Receipt Printer |
|
Card Reader
|
EMV Motorized Card Reader, DIP Card Reader(opt.), Contactless Card Reader (opt.)
|
| Card Security |
Card Retract (opt.), Card return on power failure (opt.), and Anti-skimming |
| EPP |
PCI compliant, 4x4 metal EPP, 2x4 function keys, dust/water/vandal resistant, support customizable layout and braille key |
| Environment |
Work Environment |
Temperature:-10℃~+65℃(+14℉~+149℉)(Indoor),-35℃~+75℃,(-31℉~+167℉)(Outdoor with heater)
Humidity: 20%~85%(No condensation) |
| Storage Environment |
Temperature: -20℃~+85℃(-4℉~+185℉)
Humidity: 5%~90%(No condensation) |
| Additional Module |
|
SIU Control Board, Fan, Heater (opt.) |
Company Introduction:
Herong Intelligent Equipment Co., Ltd. is a professional manufacturer integrating R&D, production, assembly, sales and service. Herong was established in 2016 and is located in Dongguan City, Guangdong Province, China.
We are proficient in various types of plastic molds and CNC hardware processing. We also specialize in vending machines, ATM/VTM machines, self-service kiosks, all other functional kiosks and their parts. Our factory has advanced mold and injection molding equipment, and has set up its own CNC machining center, which can perfectly undertake ATM accessories, auto accessories, household appliances, daily necessities, electronic products, medical equipment and other projects. We have professional equipment such as CNC punching machine, bending machine, laser cutting machine, spraying line, dust free workshop and all other related equipment. We can provide ODM/OEM service for customers. All the products we offer are certified by ISO9001, SGS, RoHs, CE, FCC, etc. For logistics, we can choose DHL, UPS, FedEx, sea or air, etc., it is up to our customers.
By continuously improving product quality and providing excellent service, we have maintained a good cooperative relationship with customers in more than 130 countries around the world.
Shipment:
RFQ:
- Q:what’s the condition of your product?
A:Generally we can provide 4 conditions:new original,new generic,original used and original ref.
- Q:Is your products have a warranty?
A:Yes.Every product has a warranty,normally it is 3 months.
- Q:Do you have your own factory?
A: Of course yes.We have our own factory,we can build the molds and produce parts by ourselves.
- Q:What’s the lead time of your product?
A:Normally it is 3-7 days after payment.The lead time is related to the quantity you ordered.
